DOUBLE STEEL TAPE
Steel Tape Armouring Machine (DST)
Double Steel Tape (DST) Armouring for Subterranean & Heavy Duty Protection

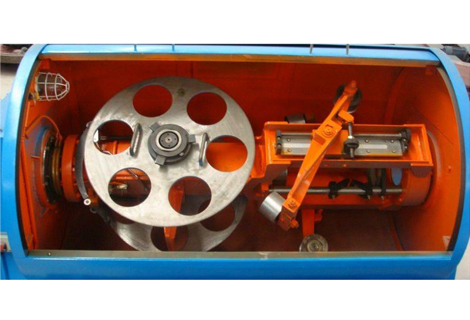

ORIGINAL PRODUCT PHOTO
JSK FACTORY DIRECT
More Images (2 Photos Available)
Key Engineering Advantages
- Constant pneumatic / hysteresis magnetic tape tension control
- Independent high-precision gearbox with digital pitch synchronization
- Tape run-out and tape breakage automatic line stop sensors
AUTHENTIC SPECIFICATIONS & DESCRIPTION
Overview & Application
JSK MACHINES provides high class Steel Tape Armouring Machines. Solution for taping on all type of cable i.e. Quadding Cable, Telecommunication Cable, Control Cable and Signalling Cable.
Engineered for high-speed double steel tape (DST) application ensuring robust mechanical protection and rodent resistance.
| Technical Specifications: Steel Tape Armouring Machine (DST) | |
|---|---|
| Armouring Type | Double Steel Tape |
| Applicable Cables | Quad Cable, Telecom Cable, Control Cable, Railway Signalling Cable |
| Tape Width Range | 20mm to 75mm |
| Tape Pad Diameter | Up to 600 mm OD |
| Taping Heads | Dual High-Speed Tangential Heads with Independent Tension Control |
| Rotational Speed | Up to 400 RPM with smooth pneumatic braking |
| Haul Off Unit | Caterpillar |
Need a Customized Configuration?
We custom manufacture bobbin sizes, speeds, and line layouts for your plant.
