BOW SKIP TYPE
Skip Stranding Machine
High-Productivity Bow Strander for Copper, Aluminum & Core Laying

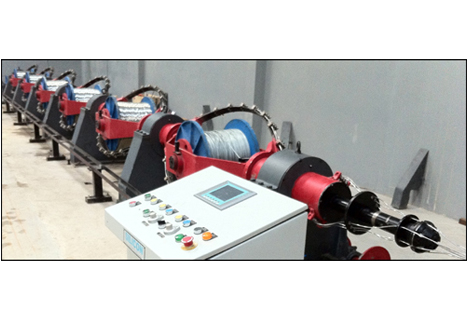

ORIGINAL PRODUCT PHOTO
JSK FACTORY DIRECT

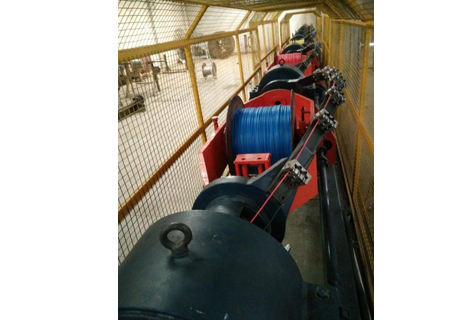

More Images (3 Photos Available)
Key Engineering Advantages
- Aerodynamic composite bows with ceramic wire guide rings
- Automatic cradle leveling and pneumatic disc emergency braking
- Low power consumption compared to conventional rigid stranders
AUTHENTIC SPECIFICATIONS & DESCRIPTION
Overview & Application
Your most Reliable Investment when looking for high productive equipment, the bow skip strander is a good choice. Bobbin hold on bearing Pintle for smooth running & diameter compensating Mechanical Device keeps constant tension all the process within the entire adjustable tension range. It improves process speed keeping the elongation of wire under control.
High Speed Skip Stranding Machines for Copper, Aluminum and Core Stranding / Laying. This Strander is used for making 7 Strands or Multi Core Cables.
| Technical Specifications: Skip Stranding Machine | |
|---|---|
| Conductor Range | Copper & Aluminum Wires, 7-Strand Conductors, Multi-Core Laying |
| Bobbin Mounting | Heavy-Duty Bearing Pintles with mechanical quick-lock mechanism |
| Tension Control | Diameter Compensating Mechanical Device maintaining constant tension |
| Wire Integrity | Low elongation aerodynamic bows engineered to prevent wire stretching |
| Bobbin Sizes | 630mm, 800mm, 1000mm, 1250mm and 1600mm |
| Rotational Speed | High speed output up to 1000 RPM (depending on Bobbin size) |
| Line Integration | Meter counter, emergency stop wire-break sensor, integrated haul-off capstan |
Need a Customized Configuration?
We custom manufacture bobbin sizes, speeds, and line layouts for your plant.
