DOUBLE TWIST HIGH SPEED
Bunching Machine
Single Twist, Double Twist & Multi-Bunching for Flexible Conductors
ORIGINAL PRODUCT PHOTO
JSK FACTORY DIRECT
More Images (2 Photos Available)
Key Engineering Advantages
- Twin-twist design doubling production efficiency per rotor revolution
- Carbon fiber lightweight flyer bow with high wear resistance
AUTHENTIC SPECIFICATIONS & DESCRIPTION
Overview & Application

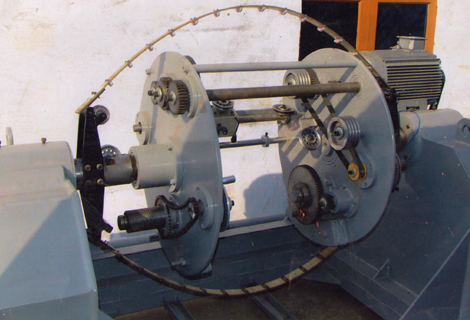

Heavy duty special model Single Twist, Double twist or Multi bunching machine, suitable to twist solid and cellular insulated conductors upto 0.8mm and multi strand flexible conductors upto 5mm (4mm OD) with minimum running tension.
The Buncher is totally enclosed within Steel Structure.
| Technical Specifications: Bunching Machine | |
|---|---|
| Conductor Size Range | Solid & Cellular insulated up to 0.8mm, flexible conductors up to 5mm² (4mm OD) |
| Machine Types | Double Twist Bunching Machine, Single Twist, Multi-Buncher |
| Twist Rate | Up to 4000 Twists per minute with carbon-composite flyer bows |
| Spool Range | 500mm, 630mm, 800mm, 1000mm Spool Capacity |
| Enclosure Design | Totally Enclosed Heavy Gauge Soundproof Steel Structure |
| Brake System | Pneumatic Disc Brake with wire-break detector |
Need a Customized Configuration?
We custom manufacture bobbin sizes, speeds, and line layouts for your plant.
